DIY Micro RC Plane 15033 brushless motor system 1s Compact Brushless Power Kit
DIY Micro RC Plane 15033 brushless motor system 1s Compact Brushless Power Kit
Couldn't load pickup availability

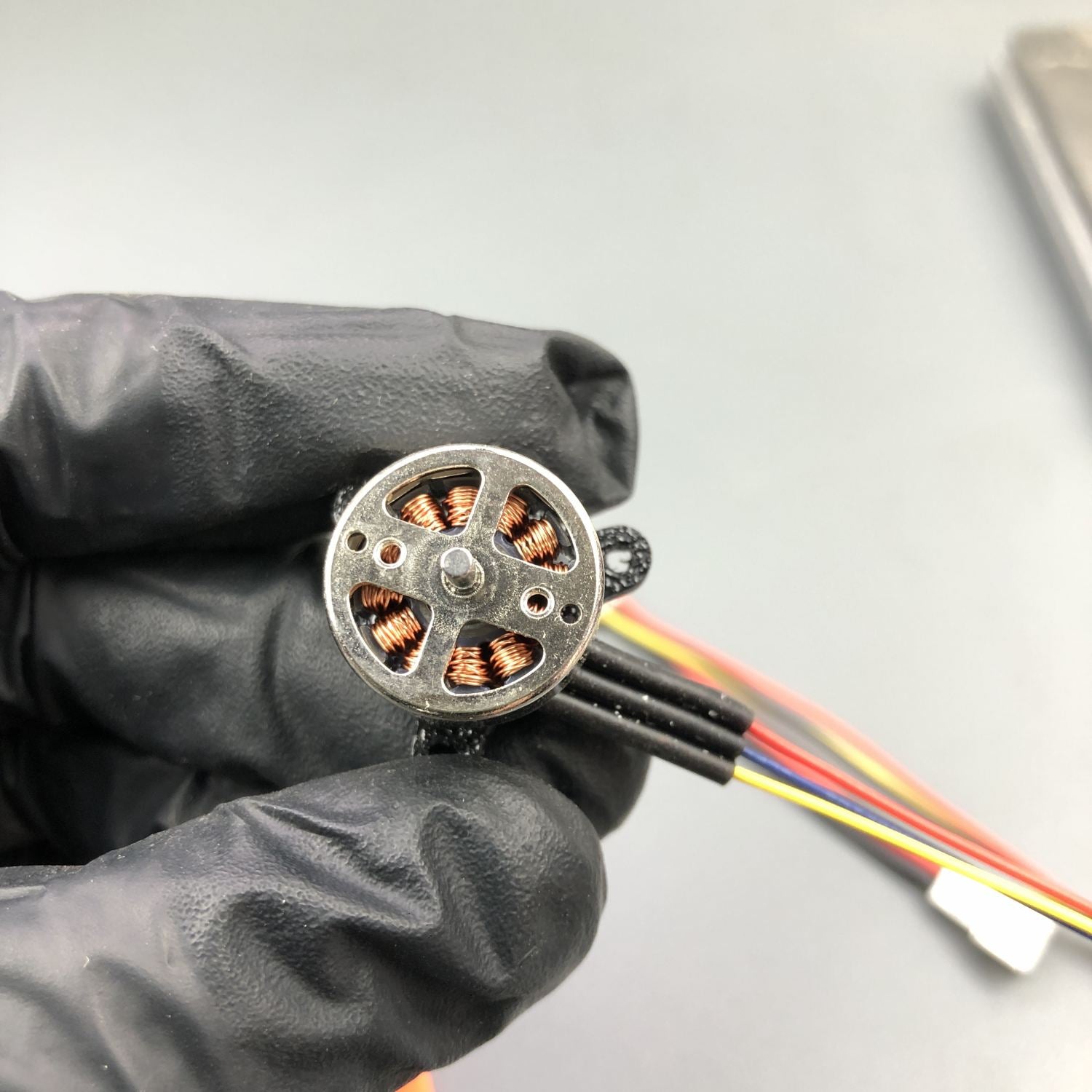

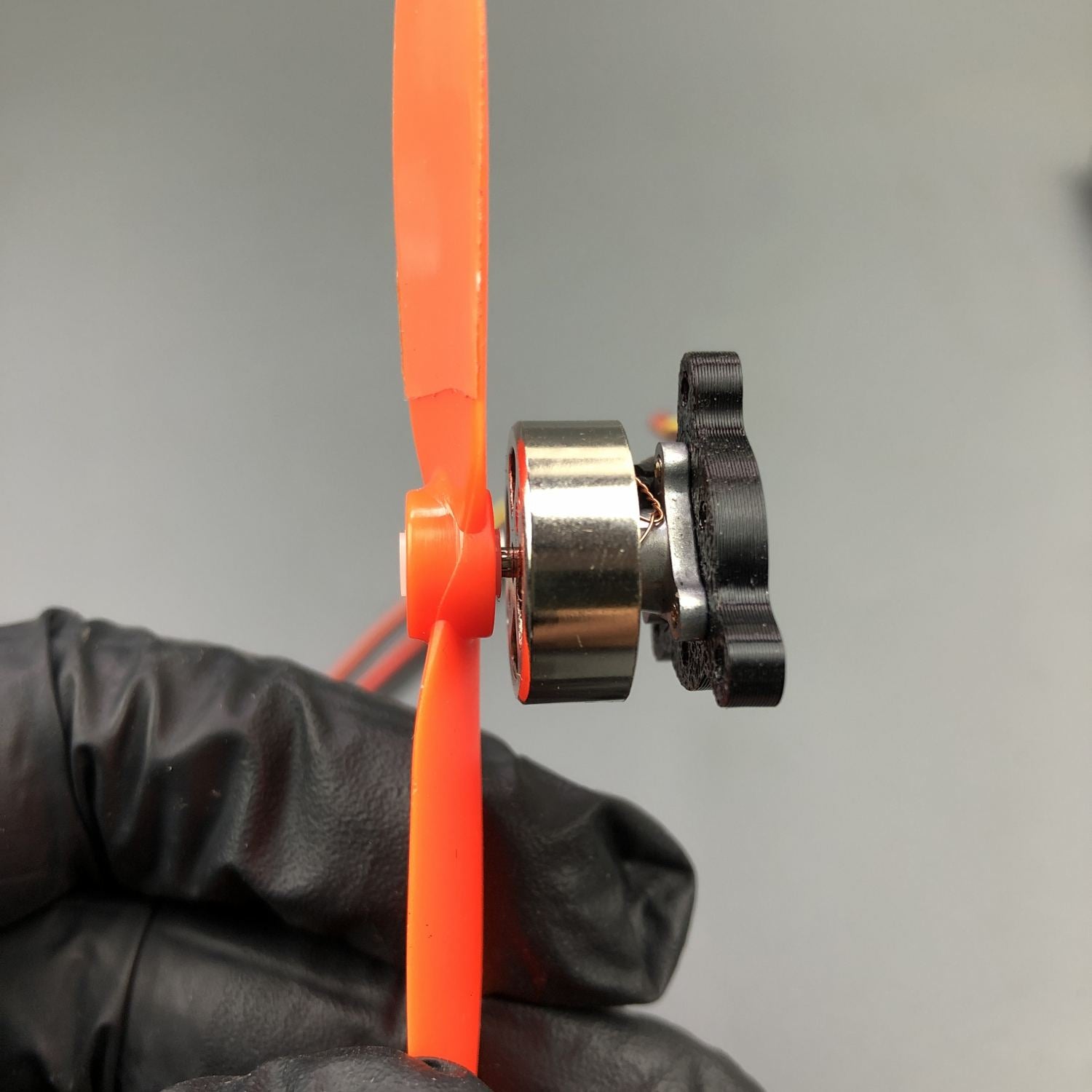

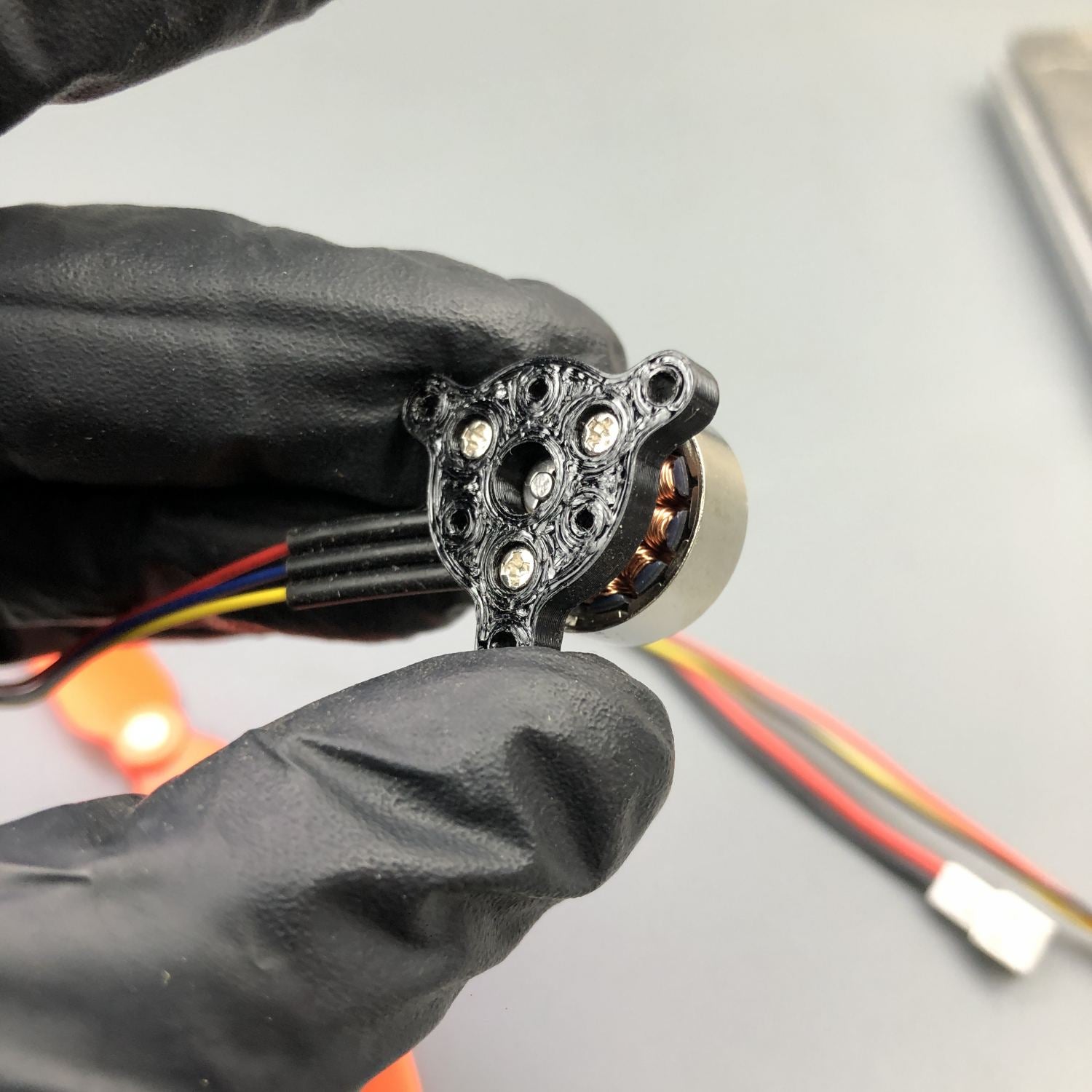

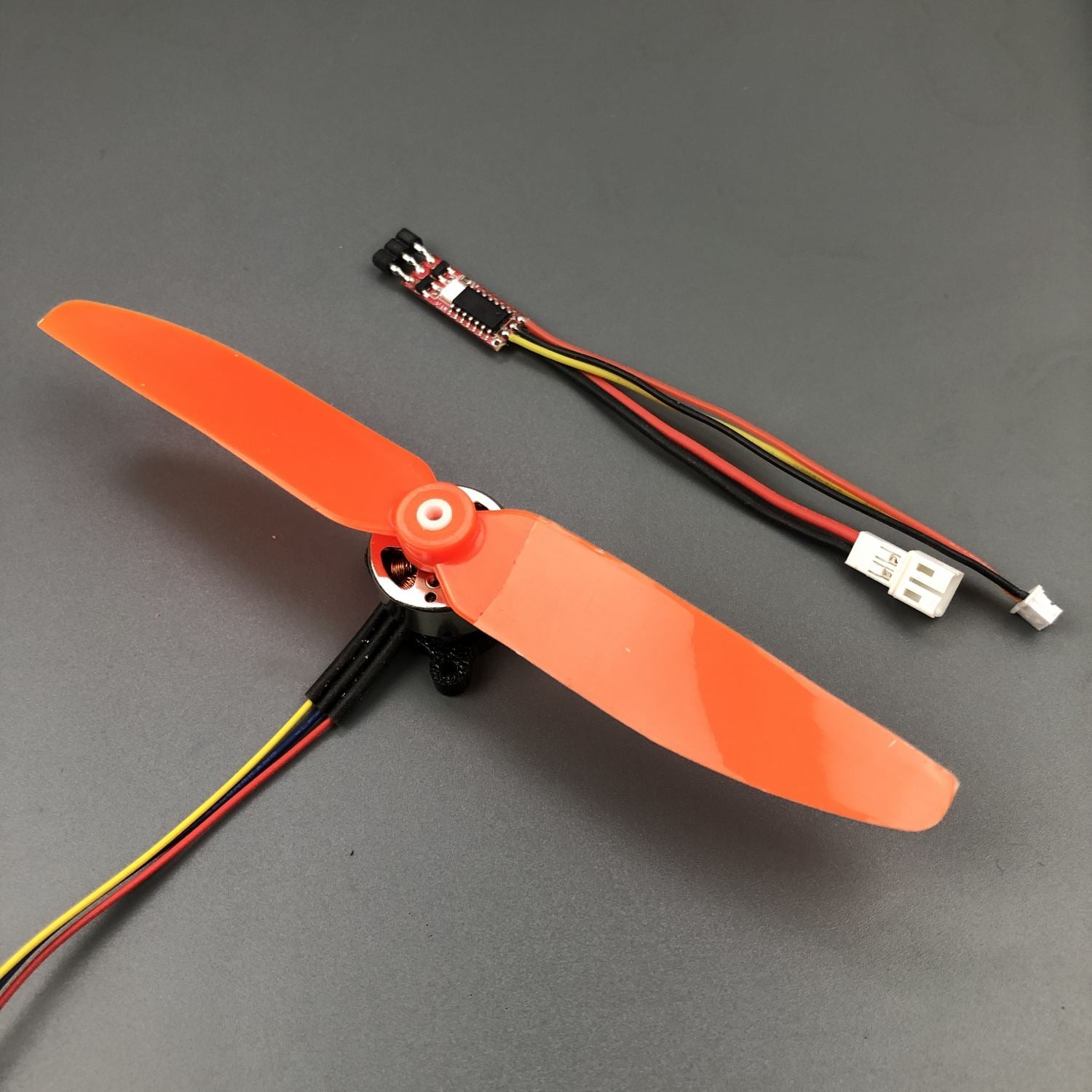

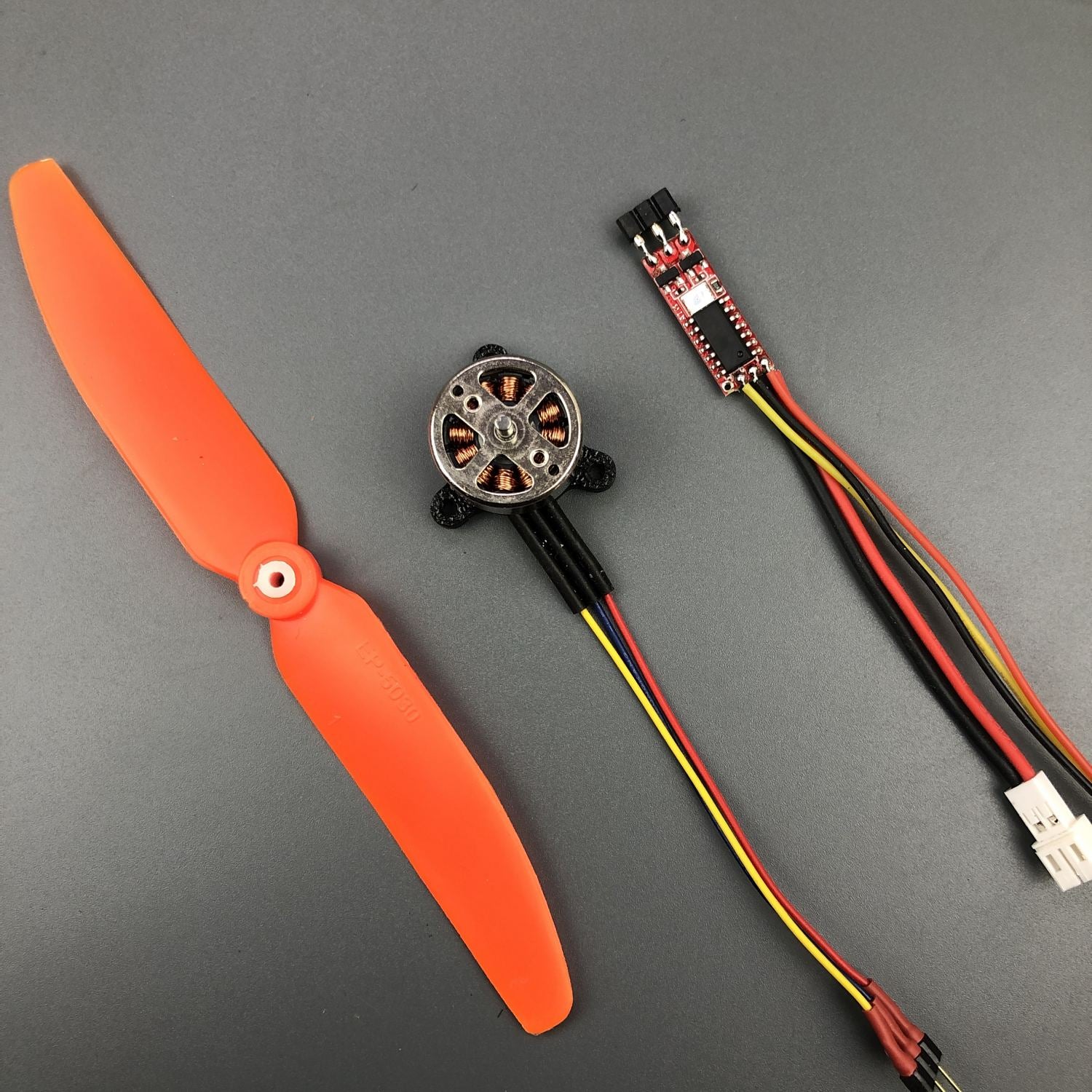

1503 Brushless Enhanced Version, 15033 Motor, 1s Brushless Power System
1s compact brushless motor kit. Its power significantly surpasses that of the 8520 geared motor. The 1020 geared motor has a stator diameter of 15mm and a height of 3.3mm. It is an enhanced version of the 1503 motor, and according to standard naming conventions, its model number is 15033.
The motor has undergone several iterations of development, resulting in significantly superior magnetic flux compared to similar products, leading to excellent power performance.
Furthermore, thanks to excellent cost control, this power system offers high cost-effectiveness. It can effectively replace coreless geared motors, solving the noise and lifespan issues of coreless geared motors at their source.
Highly recommended!
15033 Stator Specifications Output Shaft Motor Weight (KV) Matching ESC
15*3.3mm 2*5mm 8.6g 3800 mini5A
5030 Propeller
Voltage (V) Thrust (g) Current (A) Power (W) Efficiency (g/W)
3.70 90.00 3.75 13.88 6.49
4.00 101.00 4.03 16.12 6.27
4.20 108.00 4.30 18.06 5.98
