Differemt ESC  has different connections, so please read the following description carefully

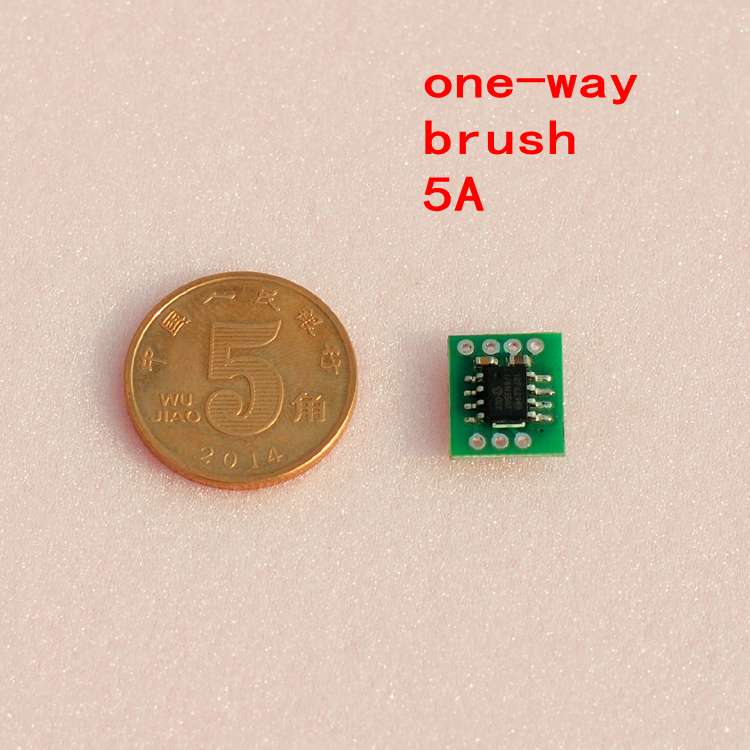

2.Brush one-way 5A

The use of a single lithium battery 1S

1: voltage 3.3V-4.2v

2: size 9*13mm

3: weight 0.4g (5A)

4: output current 5A

5: no signal protection

6: throttle protection

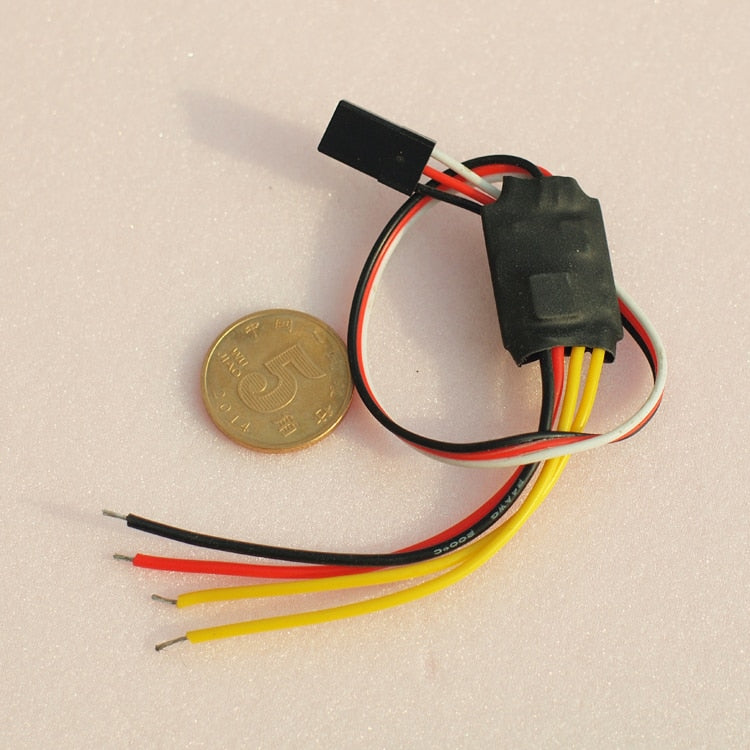

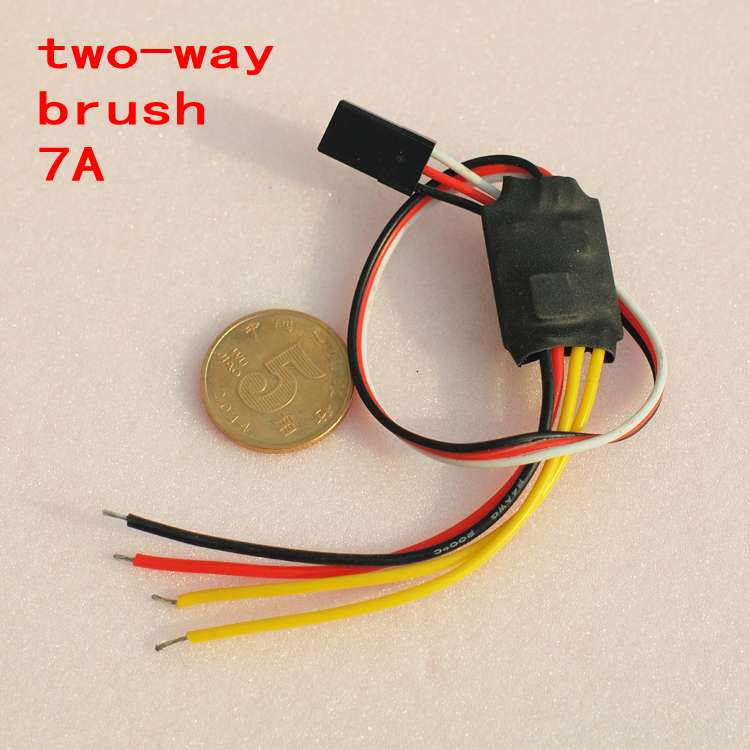

3.Two-way brush 7A



2S bidirectional brush electro tuning



1: operating voltage (3.3v-5v) 1S

2: size 15*20mm

3: weight 4G

4: current 7A

5: no signal protection

6: throttle protection

7:BEC output 5V1A

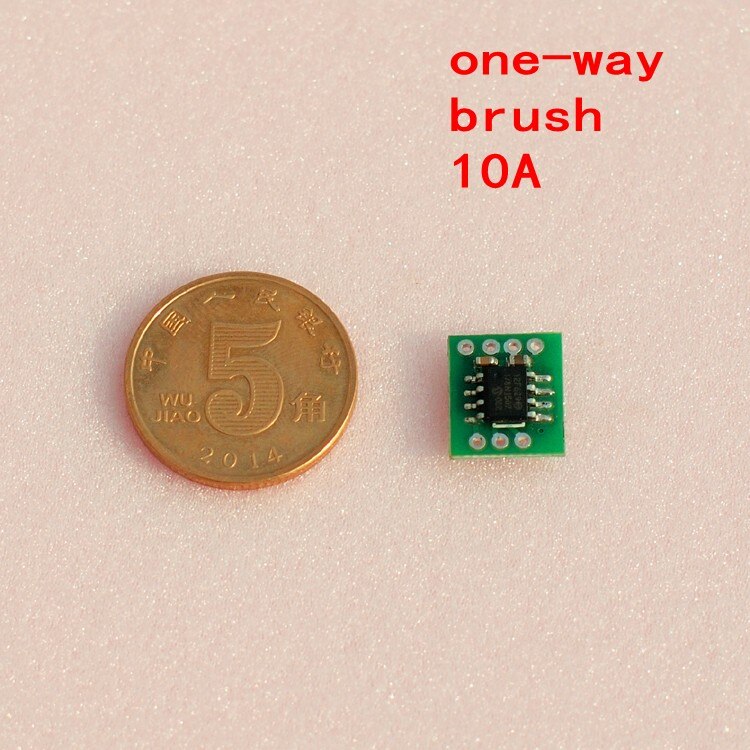

4.one-way brush 10A



The 1: version of 1s lithium battery voltage 3.7V

2: size 10*15mm

3: weight 0.6g

4: current 10A

5: no signal protection

6: throttle protection

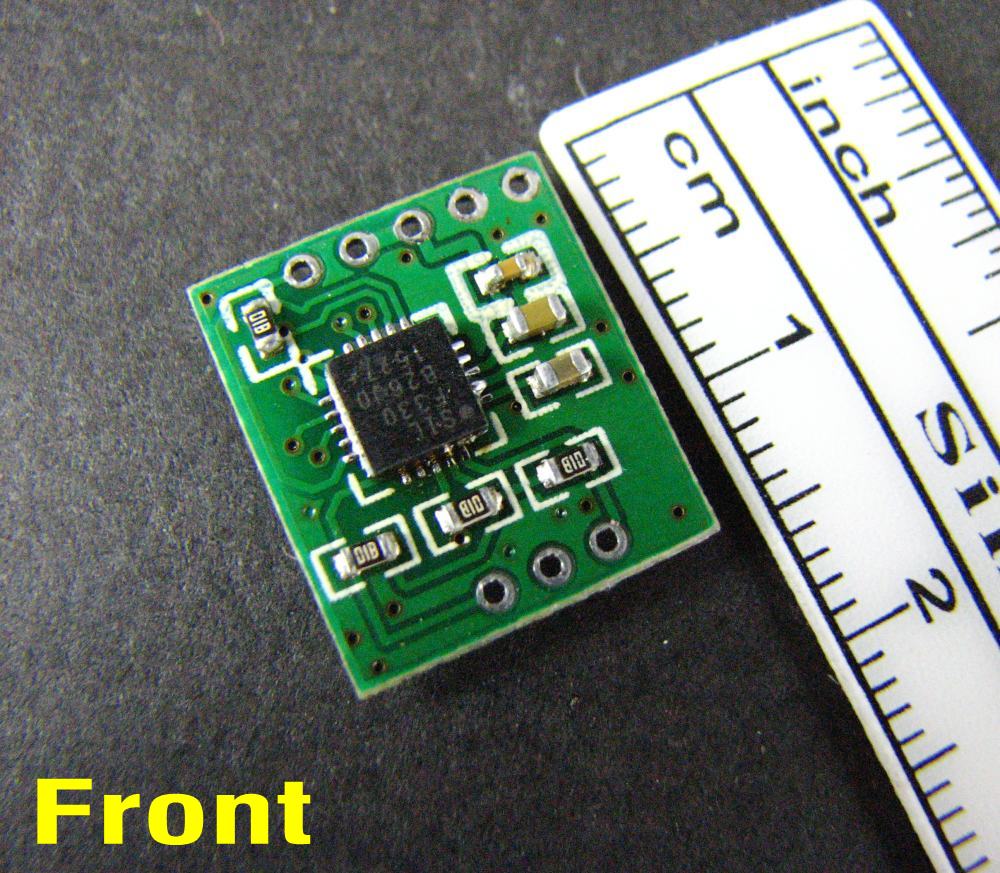

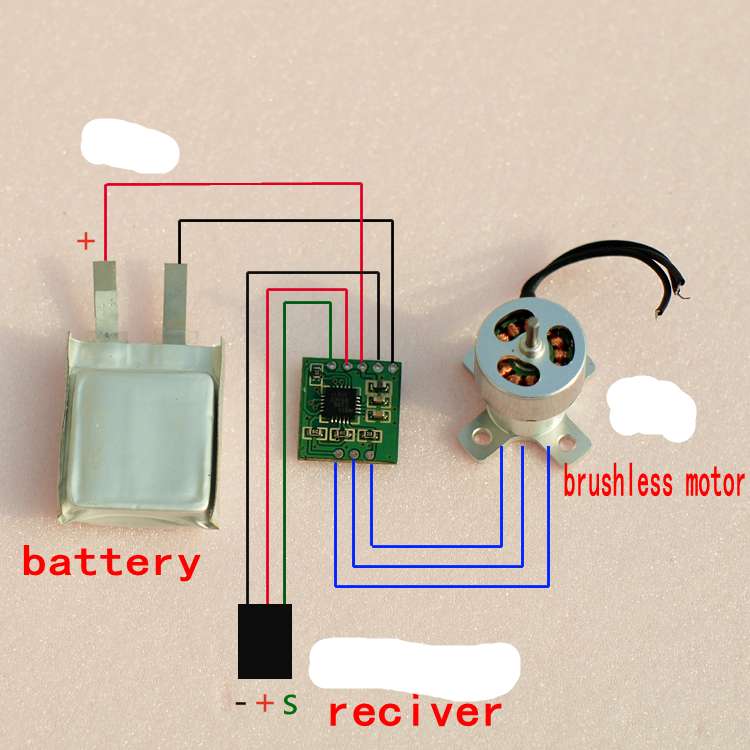

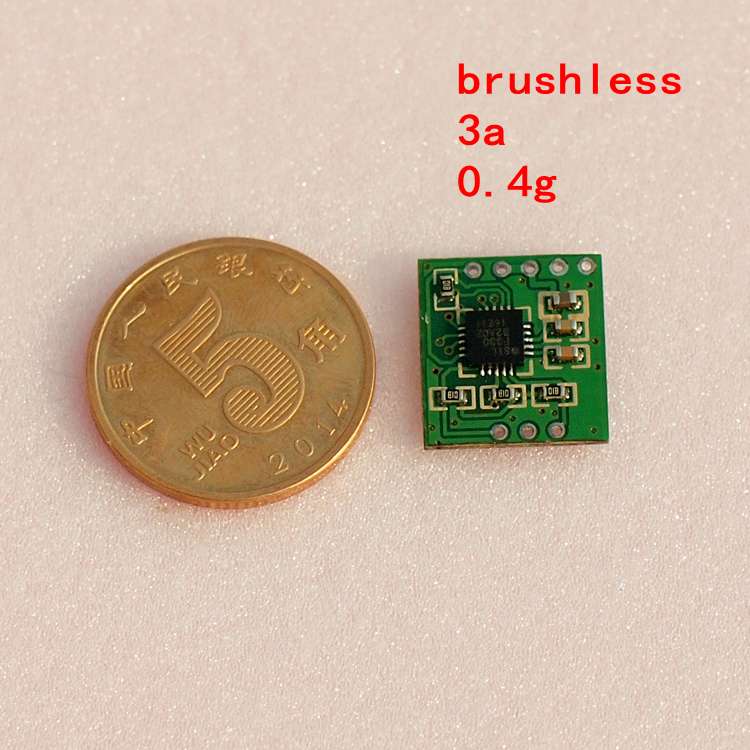

5.brushless 3a



Ultra light aeromodelling micro brushless ESC 3A using a single lithium battery 1S

Can match our shop 2 grams -5 grams, brushless motor use

1: voltage 3.3V-4.2v

2: size 13*13mm

3: weight 0.4g

4: output current 3A

5: no signal protection

6: throttle protection





DIY DEMO

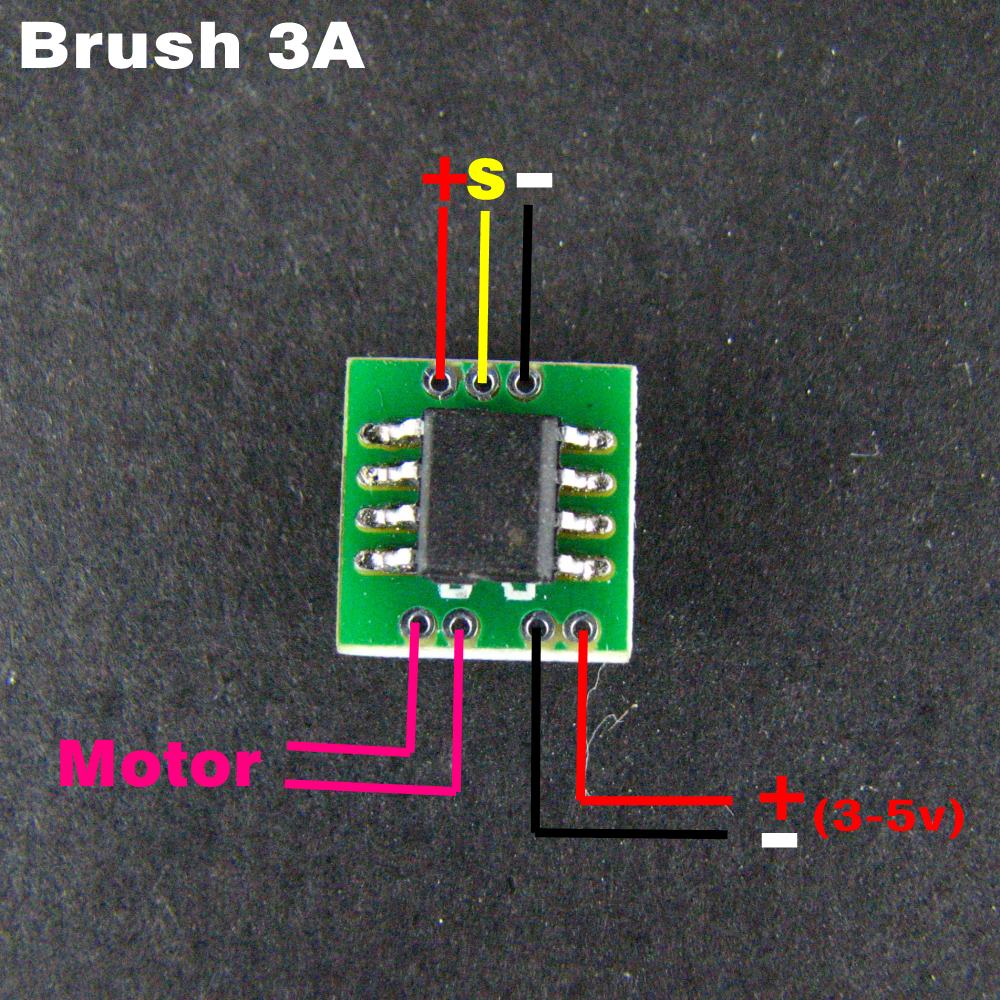

Brush 3A

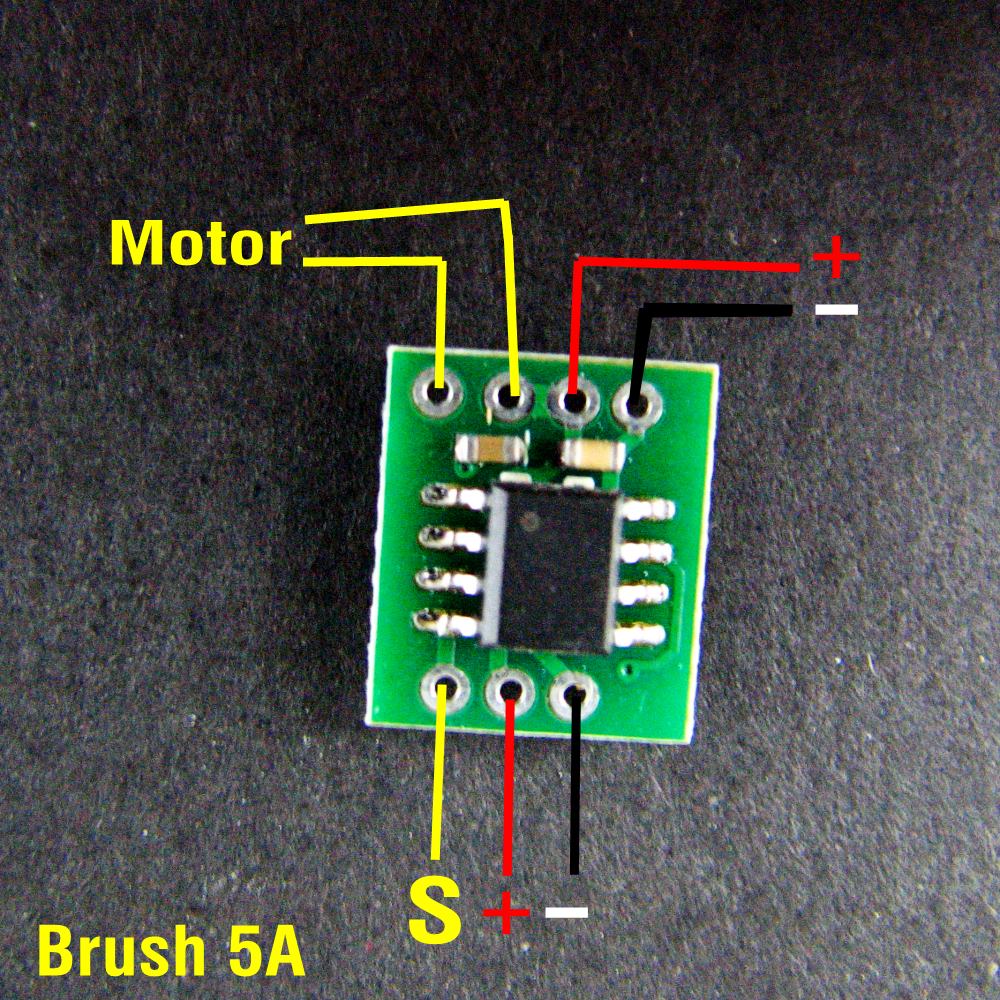

Brush 5A 10A
