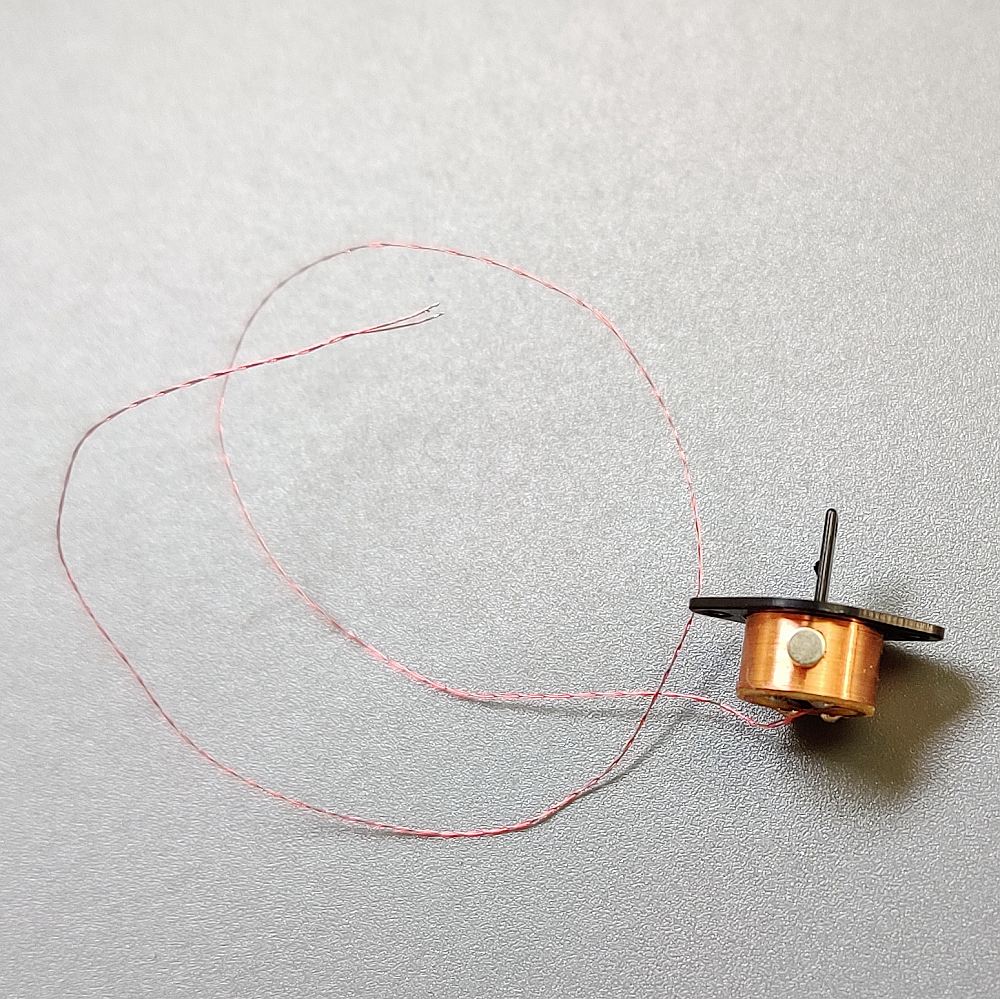

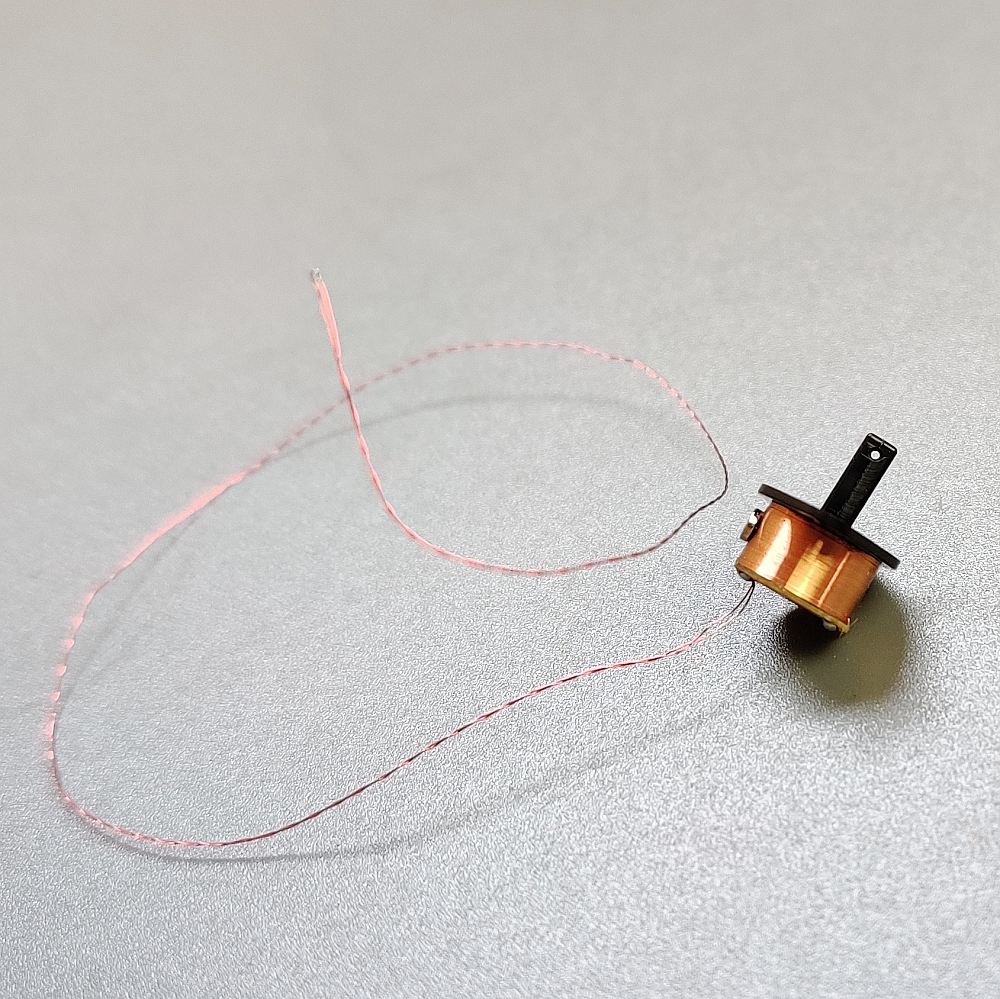

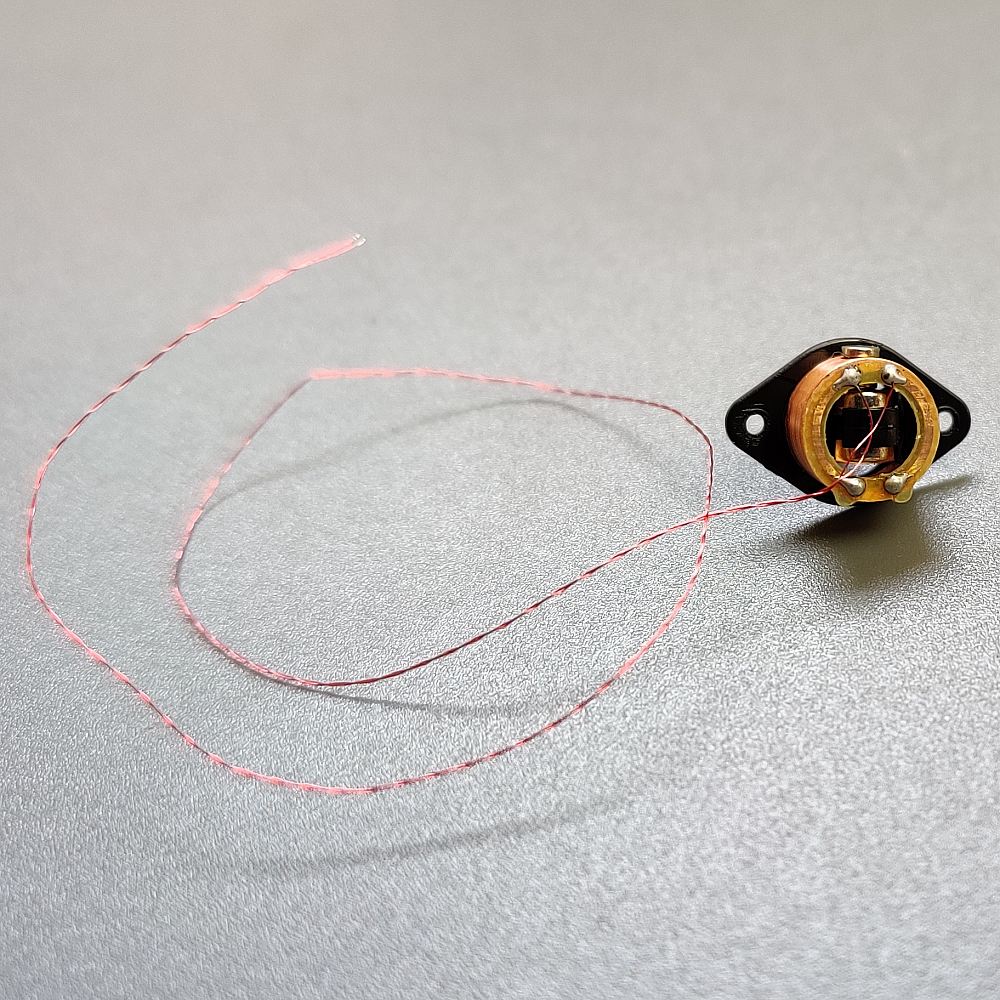

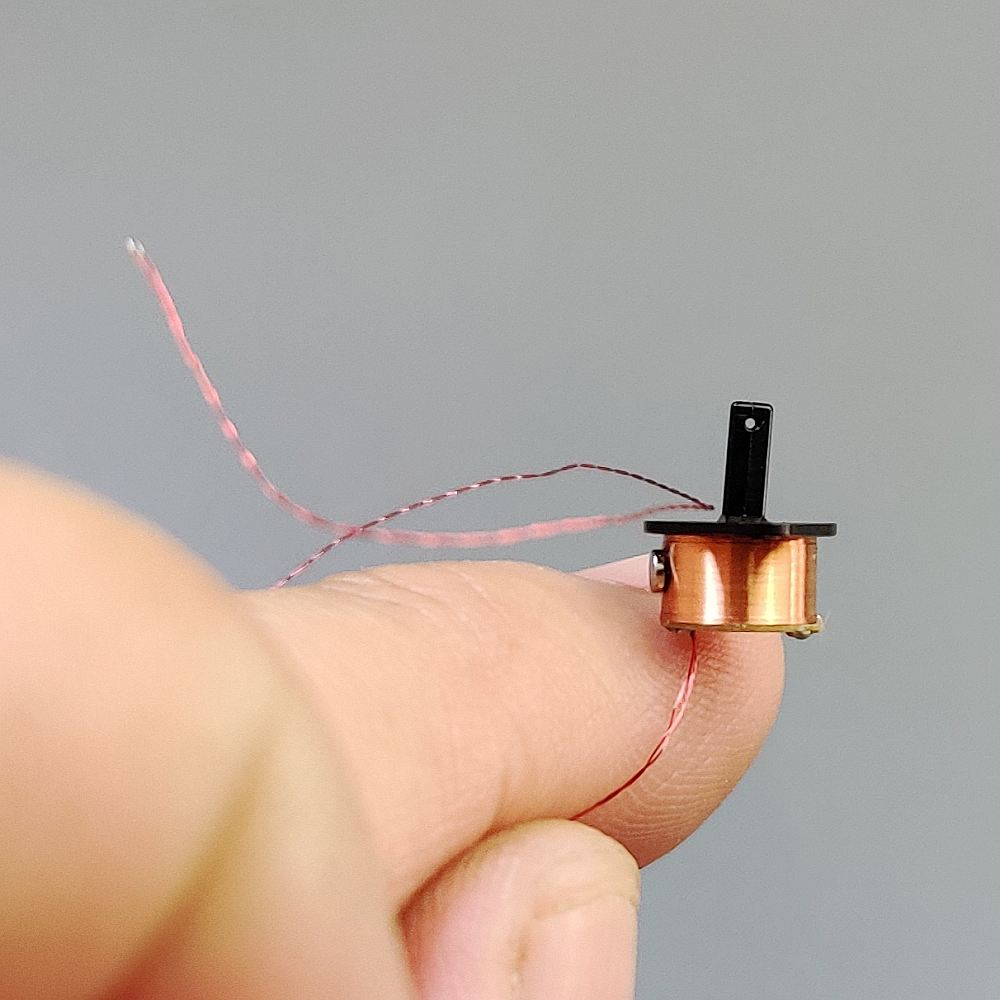

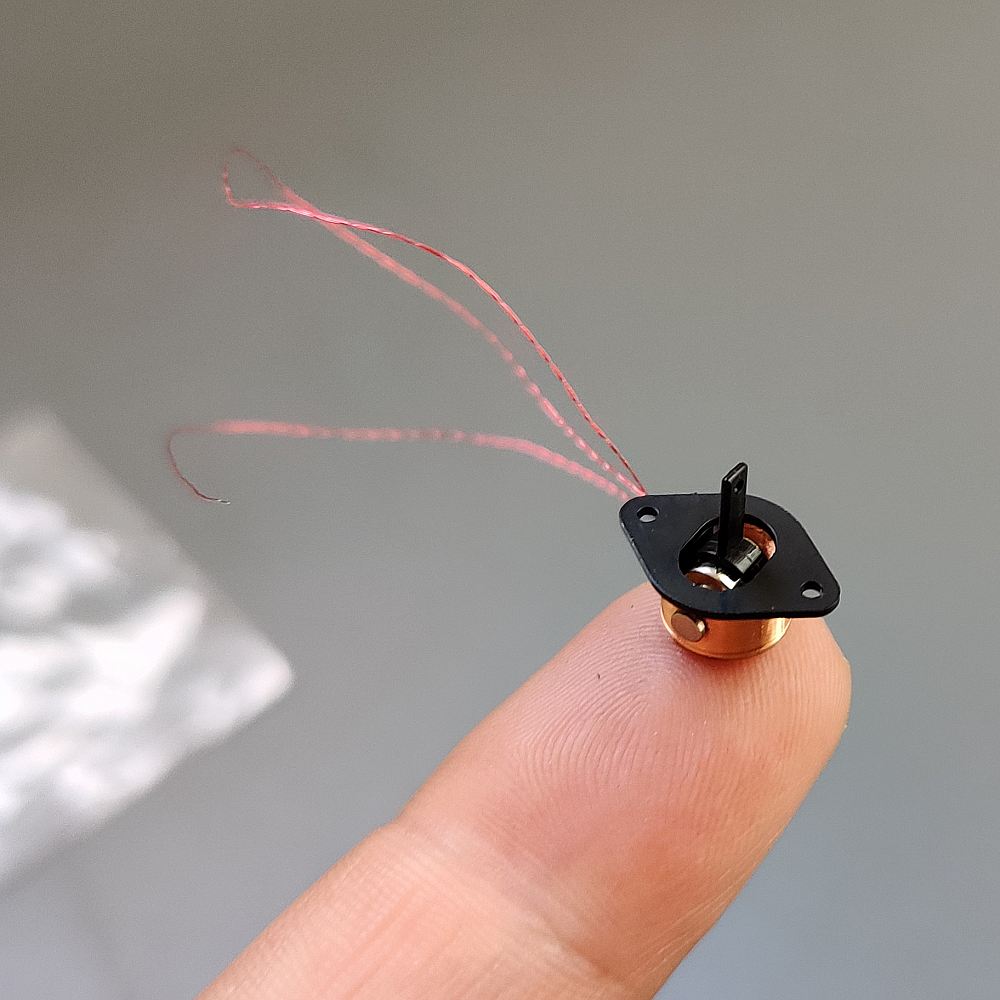

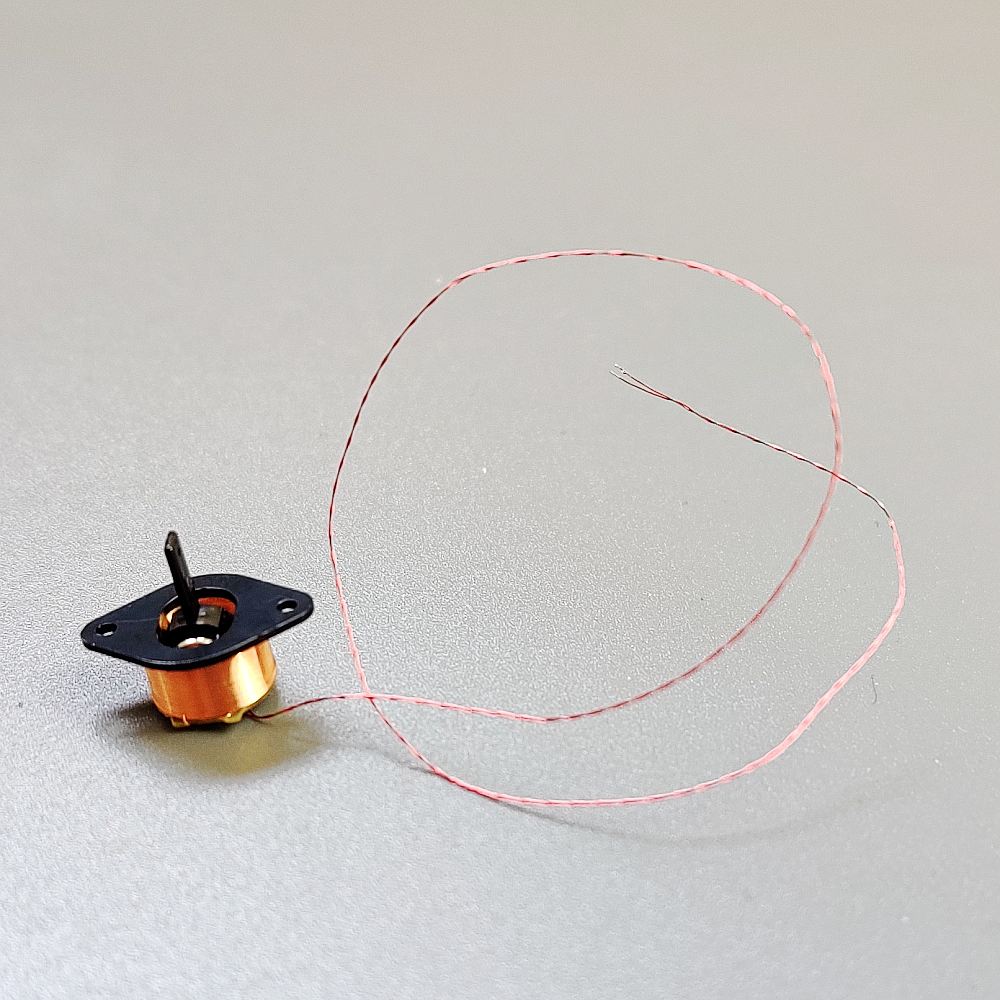

Micro Coil Actuator Weight 0.45g DIY Micro RC Plane Model Parts Micro Servo Electromagnetic Rudder

The 0.45g electromagnetic servo adopts large-diameter strong magnets, the torque is further improved, the structural parts are upgraded to high-precision injection molding technology, and the latest mechanical fine-tuning system improves the operating experience.

Servo parameters

Voltage 3-4.2V

Coil internal resistance is about 50 ohms

Finished wire length is about 160mm

Finished weight is about 0.45g

Terminals are 1.27 square pins
