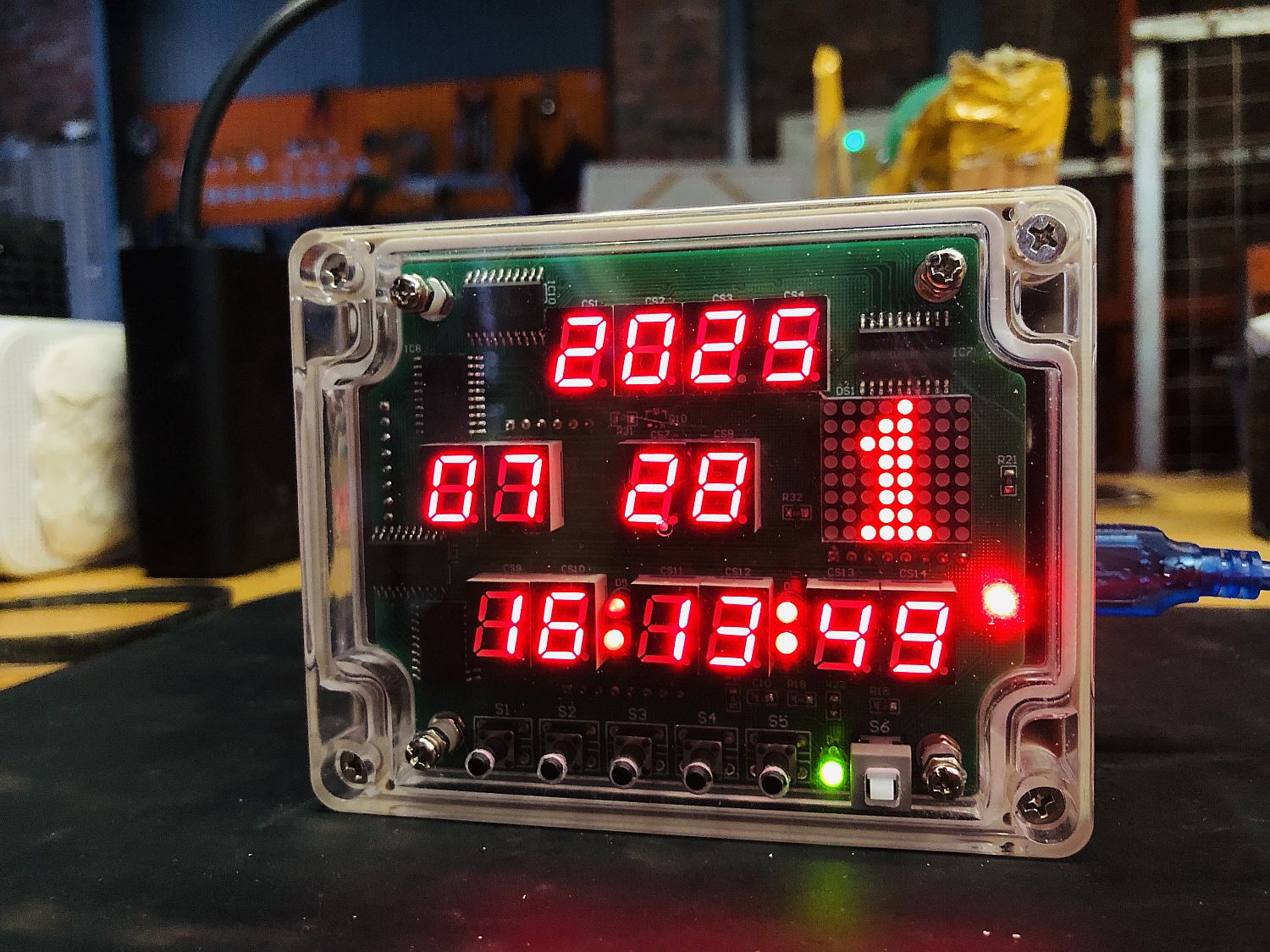

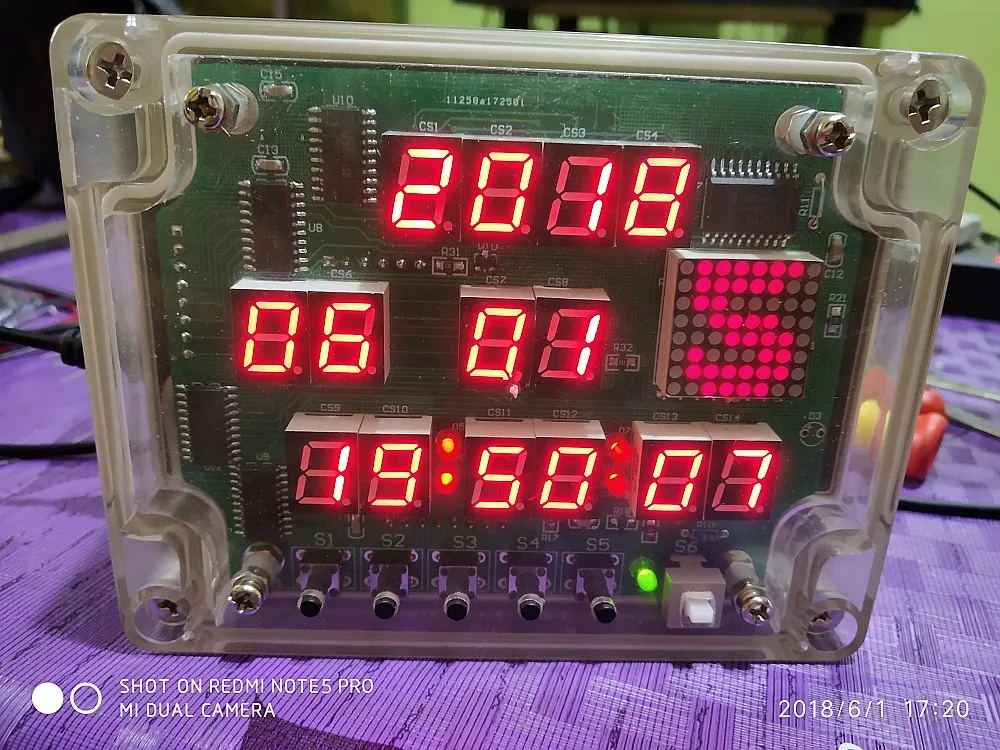

Multi function digital tube 14 LED dot matrix electronic clock diy kit soldering kit electric
Multi function digital tube 14 LED dot matrix electronic clock diy kit soldering kit electric
Regular price
$28.00 USD
Regular price
$0.00 USD
Sale price
$28.00 USD
Unit price
per
Couldn't load pickup availability
We offter two option

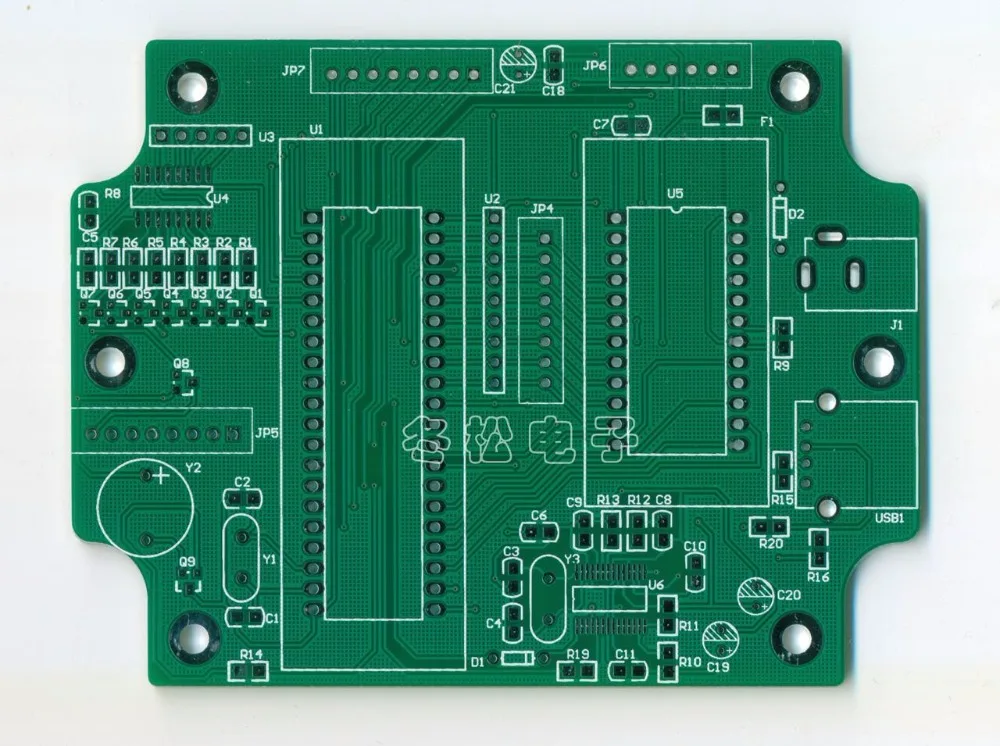

1.Diy kit,we offer instruction,you can follow it to assemble yourself,it is very easy to solder,the patch component already been welded
2.Assembled.Ready to use.

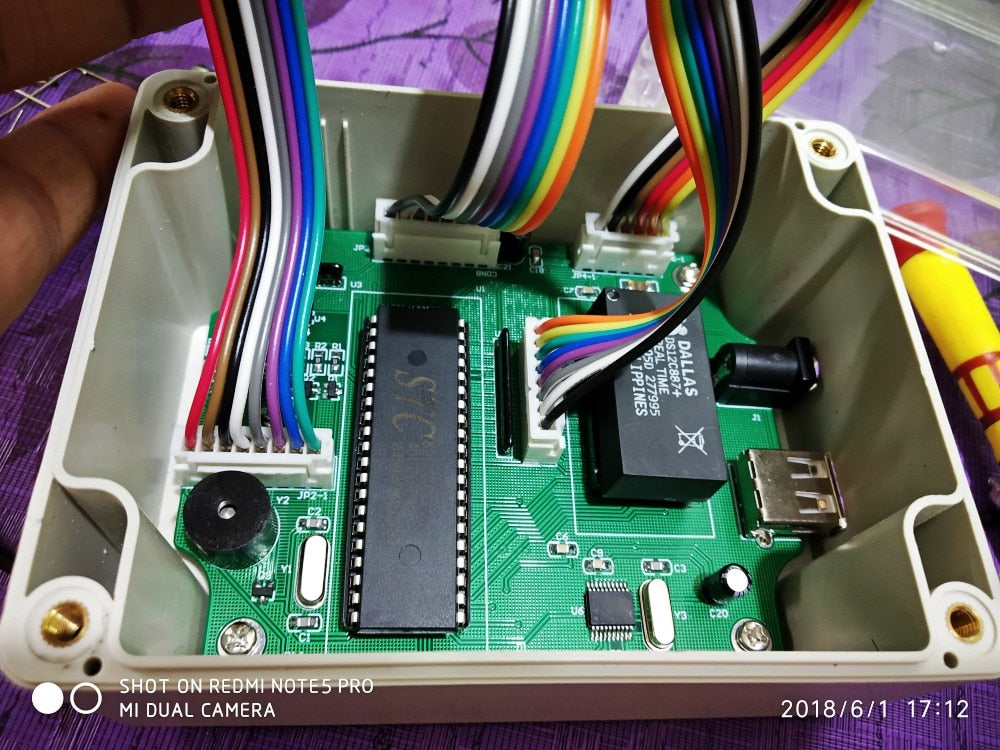

Product features: the use of 5VDC socket and USB socket two power supply, but also has the program download function, the configuration of a transparent shell, better protection of the components inside.

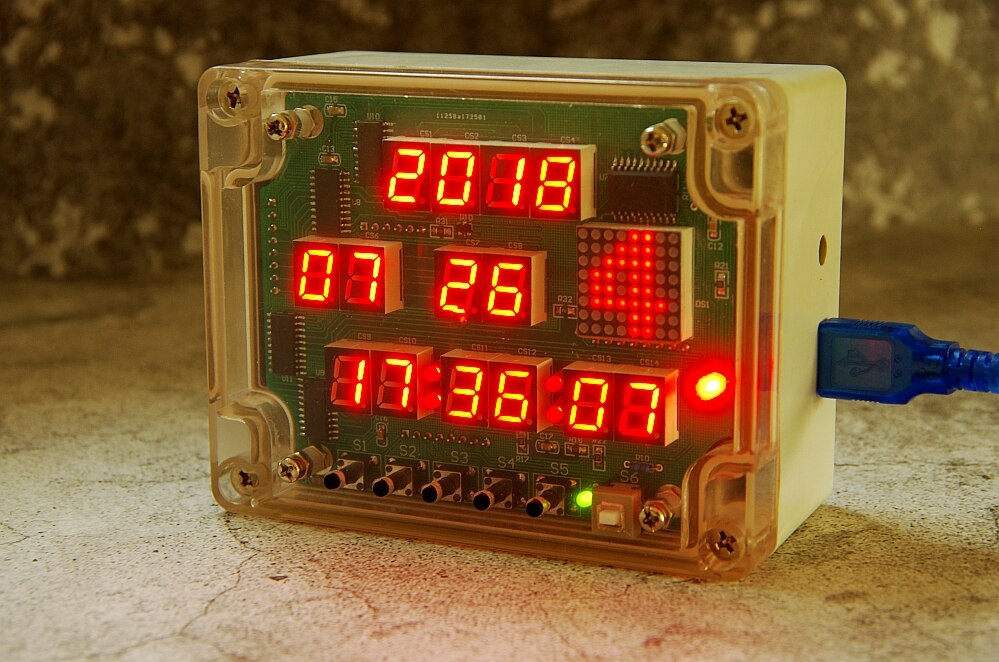

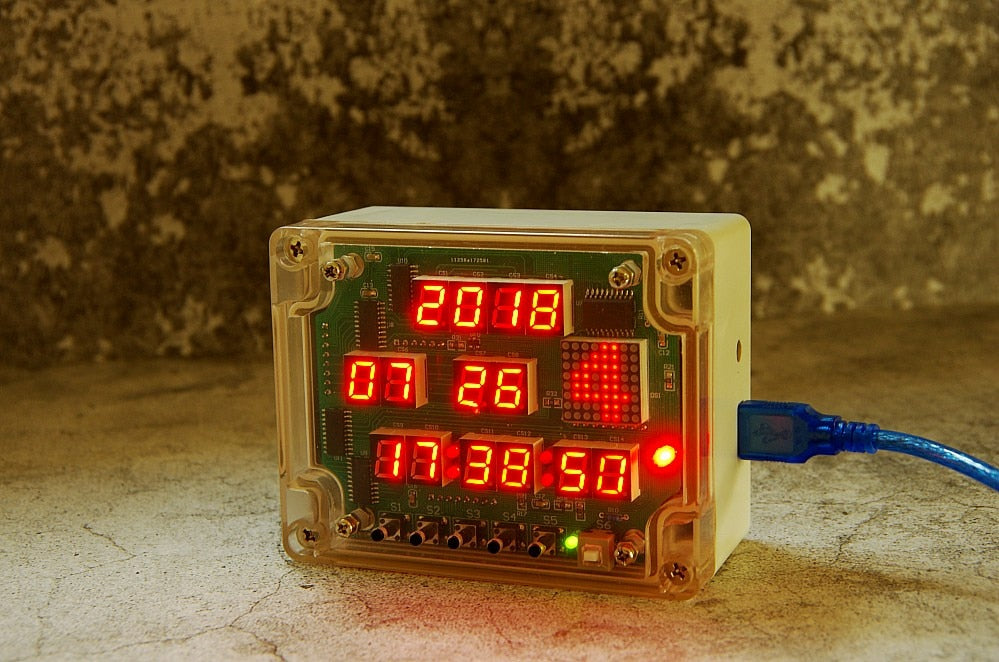

Baby shell size, 11.5cm*9cm*5.5cm, transparent panel.
This product gives the source code: the source code uses the modular design, and the detailed annotation, causes the procedure to be clear and easy to understand, is advantageous for the procedure transplant and the revision, is more convenient in other system application.
Component list:
1, a set of spare parts.
2, a pair of public USB line.
3, switching power supply: 5V/0.5A switching power supply 1.
4, electronic clock shell.
28

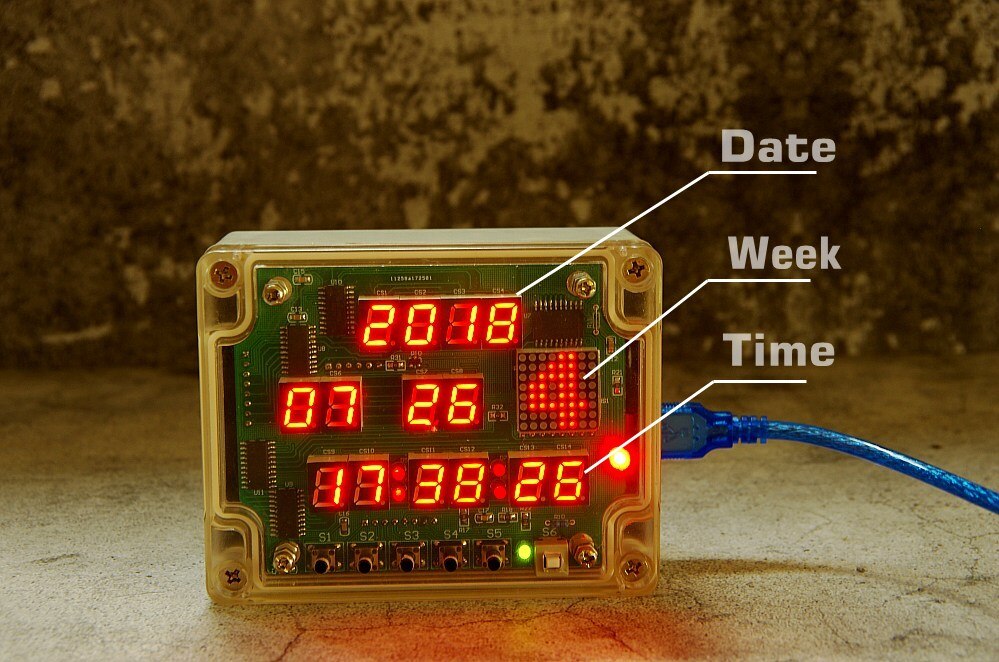

Electronic clock adjusting method

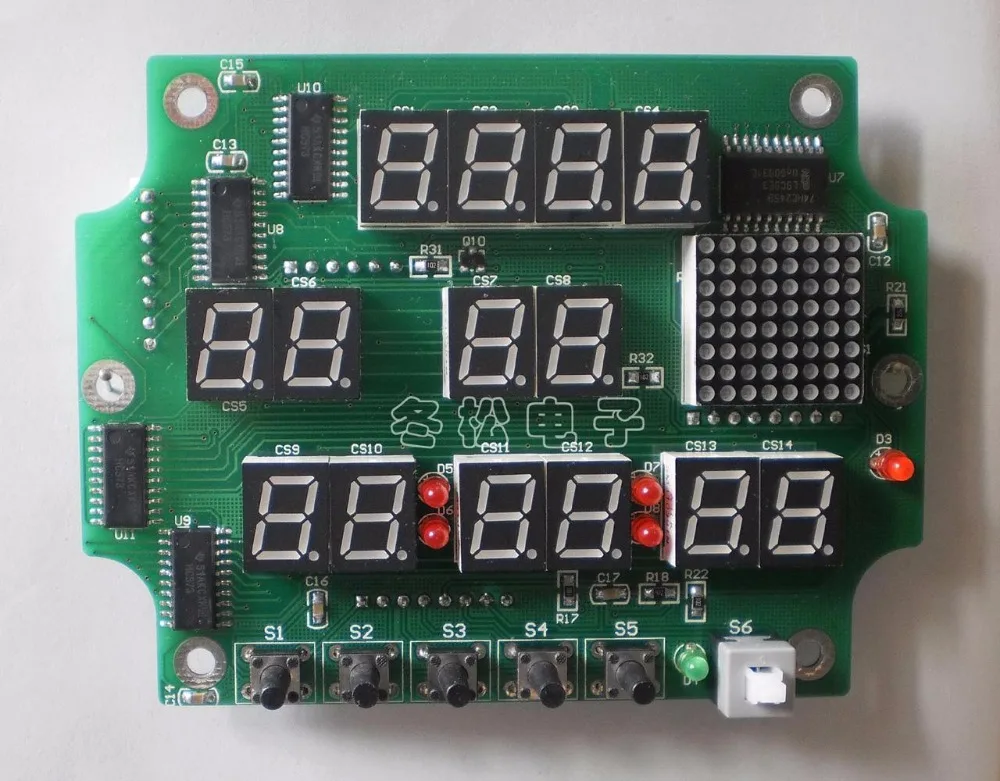

1 key functions: the clock board has 6 buttons, S1 is the key, S2 is a digital plus
Key, S3 is the number of keys, S4 is the key to adjust the alarm button, S5 is reset button,
S6 is the power to open the key.
2 clock adjustment: press the S6 key, open the power switch, press the set key S1, digital tube second
Clock flashing, and then press the S1 key, sub clock flashing, press the set key S1
, hours, days, months, years, weeks in turn, flashing in the middle,
Press the number keys S2, digital minus key S3 in turn adjust the clock, the last star
Flashing, press the plus and minus keys to adjust, and then click to set the S1 key, exit
Clock settings, and save the data, return the clock display.
3 alarm clock settings: press the S4 key to enter the alarm clock display settings, press the key S1 once, number
Code tube second clock flashing, press the S1 button two times the number of minutes flashing, press S1 key three
Times the number of hours, and then press the plus and minus keys to adjust the clock,
Press the alarm button to enter the S4, exit alarm settings, and save the alarm clock data.
4 turn off the alarm: press any key to stop the alarm.
